VALENTINE 6311 & 631451 V SERIES FRYER CONTROL THERMOSTAT & HI LIMIT DEVICE SET

CONTROL THERMOSTAT & HIGH LIMIT

1 X 6311 CONTROL

1 X 631451 HIGH LIMIT

VISIT

Fixed price listing is for 1 x 7 pin fryer temperature control thermostat & 1 x 6 pin safety high limit found on various models

This pair of thermostats is most commonly found fitted to the V-SERIES models were the control & high limit thermostat is fitted on front lower panel and has the longer capillary length that passes under the oil tank and drops down the element compartment into the oil tank. if you require the shorter capillary wire and the probes fit into front tank via lock nut please see the pension type thermostat set

Thermostat Info

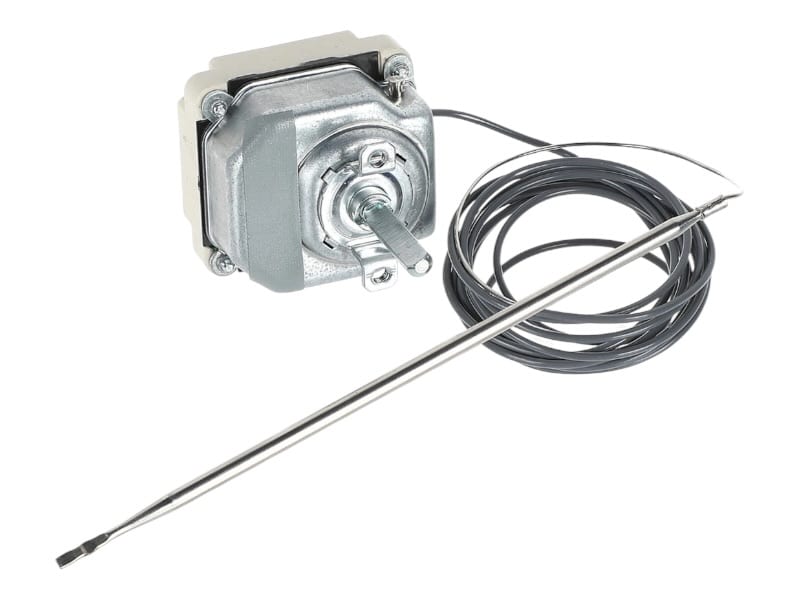

6311 CONTROL THERMOSTAT

Max temperature 206℃

Temperature Range 120-206℃

Number of Pins 7

Number of poles 3

Probe Length 157mm

Probe Diameter 4mm

Capillary Length 1780mm

631451 HIGH LIMIT

Max temperature 290℃

Number of Pins 6

Number of poles 3

Probe Length 128mm

Probe Diameter 4mm

Capillary Length 1770mm

Linked models

V200 / V2200 / V250 / V400 / V600
