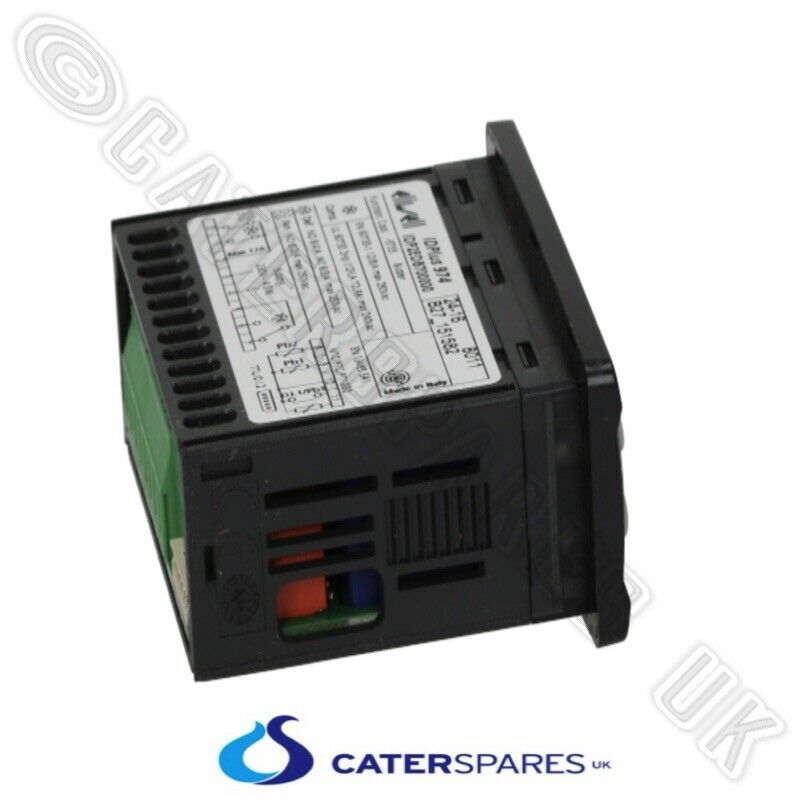

ELIWELL ID PLUS 974 DIGITAL CONTROL THERMOSTAT FOR FRIDGE FREEZER 230V IDPLUS974

Categories: ,

Product SKU: 82836_CIE181

Part Number: IDP2EDB700001

Fixed price listing is for one Digital Controller, Used in various models

Part Info

  • Producer Eliwell
  • Type IDPLUS 974
  • Model IDP2EDB700000
  • Mounting measurements 71x29mm
  • Supply 230v
  • Voltage AC
  • Probe type NTC/PTC/PT1000 (NOT INCLUDED)
  • Relay outputs 3
  • Relay output 1 NO-12A
  • Relay output 2 CO-8A
  • Relay output 3 NO-5A
  • Built in depth 67mm
  • Buzzer internal yes
  • Measuring range -55℃ up to +150℃
View Compatible Models

£110.00 £91.67 ex vat

1 in stock

Part Info

  • Producer Eliwell
  • Type IDPLUS 974
  • Model IDP2EDB700000
  • Mounting measurements 71x29mm
  • Supply 230v
  • Voltage AC
  • Probe type NTC/PTC/PT1000 (NOT INCLUDED)
  • Relay outputs 3
  • Relay output 1 NO-12A
  • Relay output 2 CO-8A
  • Relay output 3 NO-5A
  • Built in depth 67mm
  • Buzzer internal yes
  • Measuring range -55℃ up to +150℃

Linked Models

  • Universal

Linked Part Number

  • IDP2EDB700000 ELIWELL
